Send InquiryFoxconn-Certified ZD-16-8 Compact Cylinder for iPhone Production Line | 16mm Bore 8mm Stroke
Price 25.0 USD ($)/ Number
MOQ : 1 Number
Foxconn-Certified ZD-16-8 Compact Cylinder for iPhone Production Line | 16mm Bore 8mm Stroke Specification
- Wall Thickness
- N/A Meter
- Capacity
- 16 Milliliter (ML)
- Pressure
- 0.2-0.7 mpa
- Temperature
- 0-60 Celsius (oC)
- Material
- Aluminum
- Usage
- 3C automation / iPhone production line
- Structure
- Other
- Dimensions
- 16 8 8 Millimeter (mm)
- Max. Stroke
- 8 Millimeter (mm)
- Shaft Diameter
- 8 Millimeter (mm)
- Seals Type
- NBR rubber seals
- Rod
- 8
- Weight
- N/A Carat
- Usage
- Suitable for compact automation, packaging, and robotics
- Corrosion Resistance
- Body is corrosion resistant
- Surface Finish
- Anodized aluminium
- Piston Speed
- 50 to 500 mm/sec
- Cushioning
- Rubber bumper at end of stroke
- Port Size
- M5, 1/8
- Operating Medium
- Filtered, lubricated or non-lubricated air
- Mounting Type
- Direct mount, through body holes
- Repeatability
- 0.1 mm
Foxconn-Certified ZD-16-8 Compact Cylinder for iPhone Production Line | 16mm Bore 8mm Stroke Trade Information
- Minimum Order Quantity
- 1 Number
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 100 Per Month
- Delivery Time
- 1 Week
- Sample Policy
- Free samples are available
- Main Export Market(s)
- Asia
- Main Domestic Market
- All India
About Foxconn-Certified ZD-16-8 Compact Cylinder for iPhone Production Line | 16mm Bore 8mm Stroke

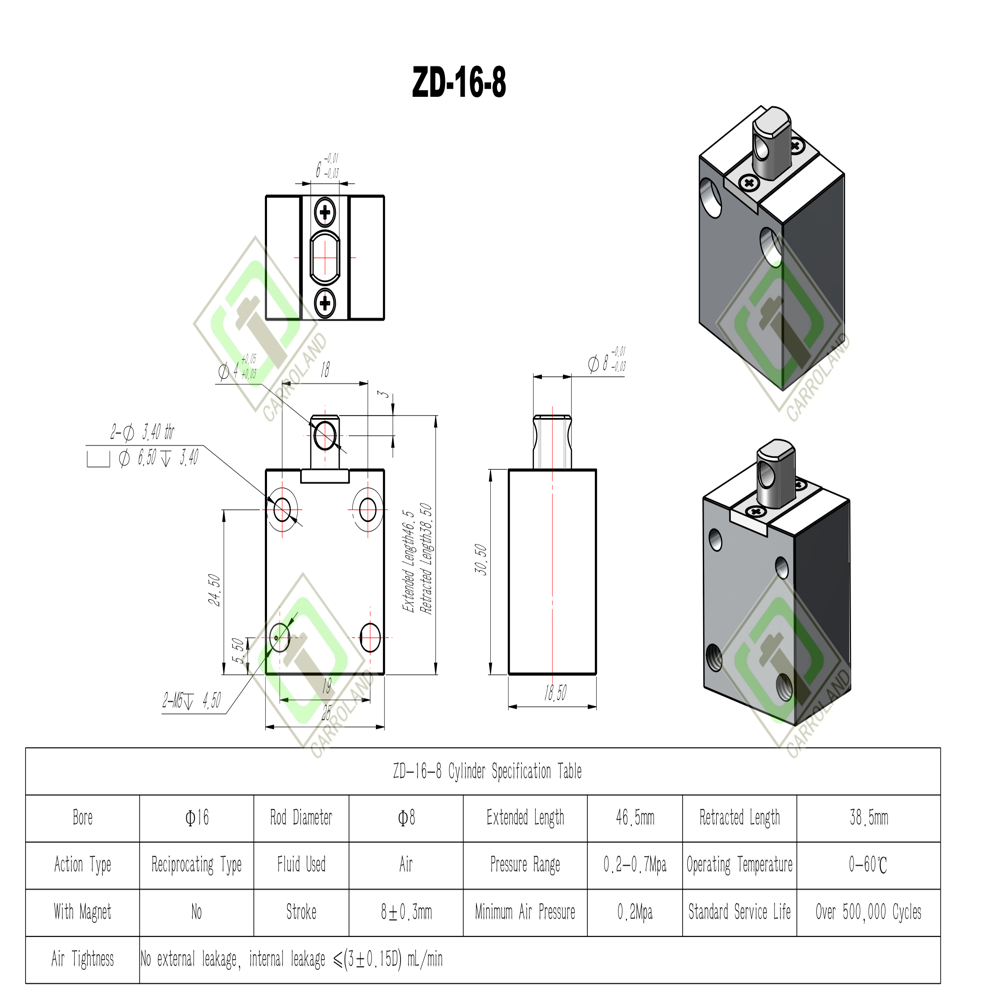

The ZD-16-8 compact pneumatic cylinder is a precision-engineered double-acting air cylinder purpose-built for high-cycle iPhone production line automation. With a 16mm bore, 8mm rod and 8mm stroke, it delivers the ultra-compact footprint required for pick-and-place stations, micro-gripping heads, PCB component pressing, and camera-module alignment jigs in iPhone manufacturing.
Key Features
- Ultra-compact body with 38.5mm retracted length - ideal for space-constrained iPhone fixture stations
- 8mm stroke with +/-0.3mm repeatability for precise component positioning
- Double-acting reciprocating design for fast extension/retraction cycles
- 0.2-0.7 MPa operating pressure range - compatible with standard factory compressed air
- 0-60 deg C operating temperature - stable across clean-room and assembly-floor conditions
- 500,000+ cycle rated service life - proven durability on iPhone production lines
- No external leakage, internal leakage <= (3+0.15D) mL/min
- M5 port thread, easy integration with standard pneumatic fittings
Typical iPhone Line Applications
- PCB and FPC component pressing
- Battery module positioning
- Camera/sensor micro-alignment
- Screen lamination fixture clamping
- General-purpose miniature automation
Why Buy From Us
- Foxconn-certified supplier for iPhone production lines
- Direct manufacturer with stable production capacity
- Free sample available for qualified buyers
- Competitive FOB price with no middleman markup
- Customizable bore/stroke/port options for OEM projects
- Compatible footprint with major-brand compact cylinder equivalents for easy retrofit
