Foxconn-Certified SXL(R)32-10-DF Force-Multiplication Clamp for iPhone Line | 650N Clamp

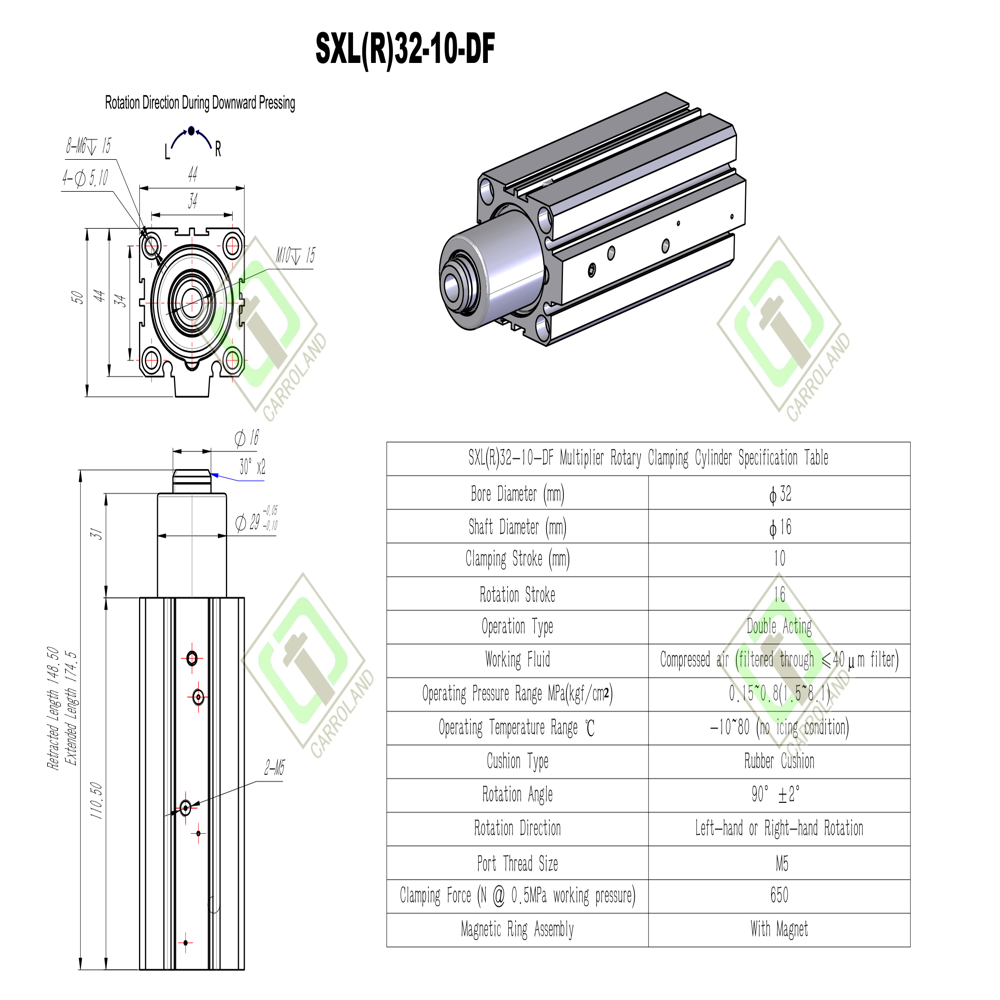

The SXL(R)32-10-DF force-multiplication rotary clamping cylinder is the high-clamp-force variant in the SXL family. Through an internal mechanical-advantage linkage, it delivers 650 N clamping force at 0.5 MPa - more than 2x the standard SXL32 - making it the ideal actuator for heavy pressing stations on the iPhone production line such as mid-plate pressing, frame assembly, and high-load structural component press-fit.

How It Works

Like the standard SXL, the DF (Double Force) version first rotates 90 deg and then clamps axially. The internal mechanical-advantage linkage amplifies the cylinder's pneumatic output, so a 32mm bore cylinder can deliver 650 N clamping force - equivalent to a much larger bore cylinder but in the same compact envelope.

Key Features

• 650 N clamping force at 0.5 MPa - 2x the standard SXL32 output
• 32mm bore, 16mm shaft
• 90 +/-2 deg rotation + 10mm clamping stroke
• Double-acting, Left (L) or Right (R) rotation
• 0.15-0.8 MPa operating pressure range
• Operating temperature -10 to 80 deg C
• Rubber cushion for end-of-stroke damping
• Built-in magnetic ring
• M5 port thread

Typical iPhone Line Applications

• Mid-plate and frame press-fit
• High-load structural component pressing
• Battery tray heavy clamping
• Display module heavy pressing
• Stiffener plate assembly

Why Buy From Us

• Foxconn-certified supplier for iPhone production lines
• Direct factory in China
• Free sample for qualified buyers
• FOB competitive price, OEM/ODM supported
• Drop-in alternative to high-clamp-force MHL2 / force-multiplication rotary clamps
  For full specifications and CAD downloads, visit: https://carroland.net/products/sxl-r-32-10-df-force-multiplication-cylinder/
